Our Products
Ŝharko5 Technology Platform
AMR comparison
Carrier comparison
| Carrier | Ŝharko5FP (Full Pallet) | Ŝharko5SP (Small Pallet) | Ŝharko5HP (HP Pallet) | Ŝharko5HH (Hammerhead) | Ŝharko5RT (Roll Transporter) | Ŝharko5RV (Rack Voyager) | Ŝharko5LF (Large Format) |
|---|---|---|---|---|---|---|---|
| Europallet |  | ||||||
| US Postal Pallet | | ||||||
| Half Euro Pallet | | ||||||
| HP Pallet | | ||||||
| Dolly | | ||||||
| Trolley | | ||||||
| Roll Container | | ||||||
| Cart | | | | ||||
| Paper Roll (Reel) | | ||||||
| Rack | | ||||||
| Large Format Media | |
Industry comparison
| Industry | Ŝharko5FP (Full Pallet) | Ŝharko5SP (Small Pallet) | Ŝharko5HP (HP Pallet) | Ŝharko5HH (Hammerhead) | Ŝharko5RT (Roll Transporter) | Ŝharko5RV (Rack Voyager) | Ŝharko5LF (Large Format) |
|---|---|---|---|---|---|---|---|
| Print Industry | | | | | | |
|
| Food Industry | | | | ||||
| Packaging Industry | | | | | |||
| Automotive Industry | | | | | |||
| Pharmaceutical Industry | | | | ||||
| Manufacturing Industry | | | | |
Software
| Software | |
|---|---|
| Fleet Management | |
| Vision Technology | |
| Data Integration | |
| Device Integration | |
| Machine Integration | |
| Virtual Button input | |
Portfolio
The Ŝharko5FP is designed to transport Euro pallets, US Postal pallets or any equivalent. Because it is omnidirectional it can turn on the spot within its own length and move sideways, allowing it to operate in really small areas.
Name:
Suitable for:
Customizable:
Overall Length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Max. Payload:
Driving behaviour:
Ŝharko5FP (Full Pallet)
Euro pallets, US Postal pallets
Yes
1523 mm (60 inch)
1205 mm (47,4 inch)
192 mm (7,6 inch)
181 mm (7,1 inch)
565 mm (22,2 inch)
1000 kg (2204 lbs)
Omnidirectional
This robot is currently the robot with the smallest turning circle. If you transport Half Euro pallets, or an equivalent, then this is the ultimate robot for those really small aisles. Because it is omnidirectional, it can turn on the spot within its own length and move sideways. Also available with a maximum payload capacity of 1.000Kg; the SP+.
Name:
Suitable for:
Customizable
Overall length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Max. Payload:
Driving behaviour:
Ŝharko5SP (Small Pallet)
Half Euro pallets, trolleys
Yes
918 mm (36,1 inch)
600 mm (23,6 inch)
192 mm (7,6 inch)
181 mm (7,1 inch)
565 mm (22,2 inch)
650 kg (1433 lbs)
Omnidirectional
The original, next generation. The extra narrow forks allow for very narrow pallets that can be handled by this variety. Even a 60cm wide pallet falls within its capabilities. It can transport the HP Indigo press pallets or a similar version of it, picking up in portrait and landscape mode, which allows it to load and unload all HP Indigo B2 presses.
Name:
Suitable for:
Customizable
Overall length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Max. Payload:
Ŝharko5HP (HP Pallet)
HP Indigo pallets (landscape and
portait), small pallets,trolleys
Yes
913 mm (36 inch)
595 mm (26,7 inch)
116 mm (4,6 inch)
190mm (7,5 inch)
422 mm (16,6 inch)
650 kg (1433 lbs)
The Ŝharko5HH or Hammerhead earned its name because (from a birds eye view) it has the outline of a hammer, and a Hammerhead is a shark variety. The hammerhead is especially designed to transport trolleys, rolleys, dollies, roll containers and racks. The single fork can be customized allowing the robot to pick up very narrow trolleys. Because it too is omnidirectional it can turn on the spot within its own length and move sideways. Also available with a maximum payload capacity of 1.000Kg; the HH+.
Name:
Suitable for:
Customizable:
Overall length:
Fork length:
Fork width:
Max. Payload:
Driving behaviour:
Ŝharko5HH (Hammerhead)
Trolleys, dollies, roll containers,
small pallets
Yes
996 mm (39 inch)
678 mm (26,7 inch)
260 mm (10,2 inch)
650 kg (1433 lbs)
Omnidirectional

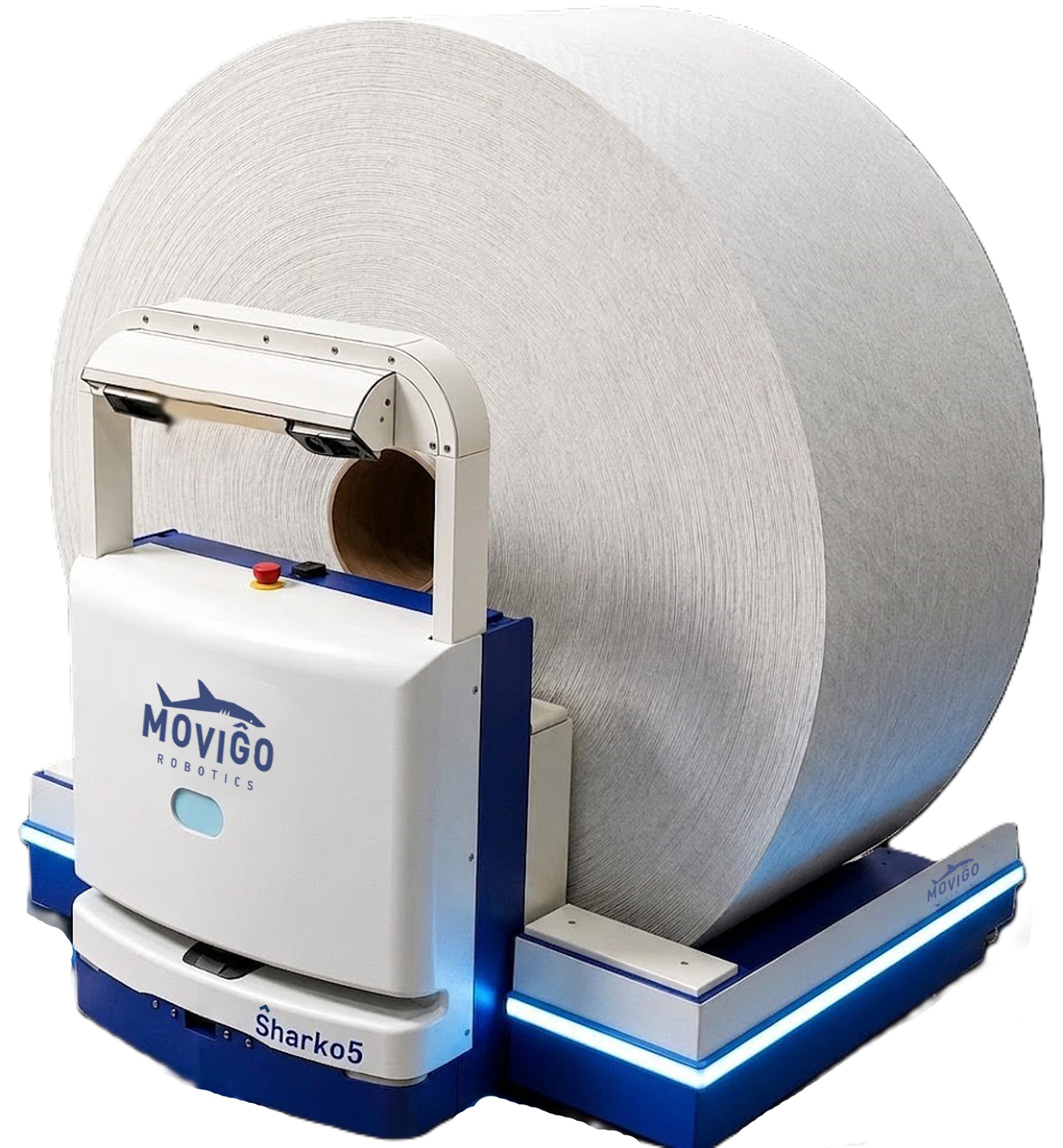

A true specialist if ever there was one. It supports all of HP’s roll fed presses like the V12, 6K, 200K and the PWP A2200. The RT picks up the rolls/reels directly from the floor. It is not exclusively for HP presses and supports all rolls with a minimum diameter of 750mm (29,5 inch) and a maximum diameter of 1270mm (50 inch).
Name:
Suitable for:
Overall length:
Overall width:
Min. roll diameter:
Max. roll diameter:
Fork length:
Max. Payload:
Driving behaviour:
Available:
Ŝharko5RT (Roll Transporter)
Rolls (reels)
1055 mm (41,5 inch)
1120 mm (44 inch)
750 mm (29,5 inch)
1270 mm (50 inch)
700 mm (27,5 inch)
850 kg (1874 lbs)
Omnidirectional
End 2026
The name says it all. This robot is specifically designed to transport the large sheets used in Large Format printing. Like large sheets of (corrugated) cardboard, Dibond or other sandwich panels. The robot can be equipped with a roller or swivel table, making it possible to load and unload Large Format printers. Because it is omnidirectional, it can turn on the spot within its own length and move sideways.
Name:
Type:
Suitable for:
Customizable:
Length:
Width:
Height:
Max. Payload:
Driving behaviour:
Ŝharko15LF (Large Format)
Under Rider
Large format media
Yes
2109 mm (43,7 inch)
1040 mm (40,9 inch)
342mm (13,7 inch)
500 kg (1433 lbs)
Omnidirectional
This is far from a Recreational Vehicle. The Rack Voyager is specifically designed to work together with its standard payload rack to offer you standardisation. You can place any payload on the rack, allowing you to automate the transport of a large variety of pallets or payloads with just one type of robot.
Name:
Type:
Suitable for:
Length:
Width:
Height:
Max. Payload:
Driving behaviour:
Ŝharko15RV (Rack Voyager)
Under Rider
Rack transport
2109 mm (83 inch)
1040 mm (41 inch)
342mm (13,7 inch)
1500 kg (3307 lbs)
Omnidirectional
