Mobile robots for the Print Industry

One robotics solution for any carrier

Endless transport opportunities for print production

The revolutionizing mobile robot technology we built for the Print Industry is now the most robust multi-carrier platform for endless possibilities when it comes to material handling in any print shop, even when space is scarce. All robots are based on the same proven technology, allowing for quick customization of robot layout to meet all shop floor demands.

See our solution in action

Bluetree Group

‘Instead of designing our processes around fixed constraints, we now have a solution that feels limitless and genuinely tailored to the needs of high‑volume, high‑mix print manufacturing. Adopting robotics early has allowed us to scale smarter, improve flow, and stay ahead as a modern, data‑driven print business.’

Our Platform Technology portfolio

Move any carrier with our custumizable AMR solutions based on our Ŝharko5 Platform Technology.

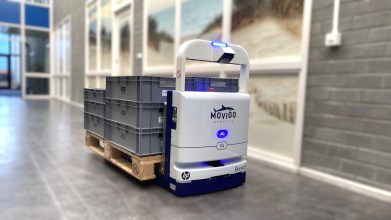

The original, next generation. The extra narrow forks allow for very narrow pallets that can be handled by this variety. Even a 60cm wide pallet falls within its capabilities. It can transport the HP Indigo press pallets or a similar version of it, picking up in portrait and landscape mode, which allows it to load and unload all HP Indigo B2 presses.

Suitable for:

Customizable

Overall length:

Fork length:

Fork width:

Space between forks:

Overall fork width:

Max. Payload:

HP Indigo pallets (landscape and

portait), small pallets,trolleys

Yes

913 mm (36 inch)

595 mm (26,7 inch)

116 mm (4,6 inch)

190mm (7,5 inch)

422 mm (16,6 inch)

650 kg (1433 lbs)

A true specialist if ever there was one. It supports all of HP’s roll fed presses like the V12, 6K, 200K and the PWP A2200. The RT picks up the rolls/reels directly from the floor. It is not exclusively for HP presses and supports all rolls with a minimum diameter of 750mm (29,5 inch) and a maximum diameter of 1270mm (50 inch).

Suitable for:

Overall length:

Overall width:

Min. roll diameter:

Max. roll diameter:

Fork length:

Max. Payload:

Driving behaviour:

Available:

Rolls (reels)

1055 mm (41,5 inch)

1120 mm (44 inch)

750 mm (29,5 inch)

1270 mm (50 inch)

700 mm (27,5 inch)

850 kg (1874 lbs)

Omnidirectional

Shipping May 2026

The Ŝharko5HH or Hammerhead earned its name because (from a birds eye view) it has the outline of a hammer, and a Hammerhead is a shark variety. The hammerhead is especially designed to transport trolleys, rolleys, dollies, roll containers and racks. The single fork can be customized allowing the robot to pick up very narrow trolleys. Because it too is omnidirectional it can turn on the spot within its own length and move sideways. Also available with a maximum payload capacity of 1.000Kg; the HH+.

Suitable for:

Customizable:

Overall length:

Fork length:

Fork width:

Max. Payload:

Driving behaviour:

Trolleys, dollies, roll containers,

small pallets

Yes

996 mm (39 inch)

678 mm (26,7 inch)

260 mm (10,2 inch)

650 kg (1433 lbs)

Omnidirectional

The big brother of the SP, designed to transport Euro pallets, US Postal pallets or any equivalent. Because it is omnidirectional it can turn on the spot within its own length and move sideways, allowing it to operate in really small areas.

Suitable for:

Customizable:

Overall Length:

Fork length:

Fork width:

Space between forks:

Overall fork width:

Max. Payload:

Driving behaviour:

Euro pallets, US Postal pallets

Yes

1523 mm (60 inch)

1205 mm (47,4 inch)

192 mm (7,6 inch)

181 mm (7,1 inch)

565 mm (22,2 inch)

1000 kg (2204 lbs)

Omnidirectional

This robot has the smallest turning circle of all robots in our portfolio. If you transport Half Euro pallets, or an equivalent, then this is the ultimate robot for those really small aisles. Because it is omnidirectional, it can turn on the spot within its own length and move sideways. Also available with a maximum payload capacity of 1.000Kg; the SP+.

Suitable for:

Customizable

Overall length:

Fork length:

Fork width:

Space between forks:

Overall fork width:

Max. Payload:

Driving behaviour:

HP Indigo pallets (landscape),

half euro pallets

Yes

918 mm (36,1 inch)

600 mm (23,6 inch)

192 mm (7,6 inch)

181 mm (7,1 inch)

565 mm (22,2 inch)

650 kg (1433 lbs)

Omnidirectional

The name says it all. This robot is specifically designed to transport the large sheets used in Large Format printing. Like large sheets of (corrugated) cardboard, Dibond or other sandwich panels. The robot can be equipped with a roller or swivel table, making it possible to load and unload Large Format printers. Because it is omnidirectional, it can turn on the spot within its own length and move sideways.
