Ŝharko5 platform for Production Logistics
All the ingredients for a complete solution
One platform, any carrier
Endless transport opportunities for Production Logistics
We offer a mobile robot technology for production logistics transport in multiple industries such as Food, Pharma, Automotive, Manufacturing and Consumer goods. The revolutionizing technology we built is a robust multi-carrier platform for endless transport possibilities, even when space is scarce.
Automating the shop floor
We introduced the Ŝharko5 mobile robot in June 2024. Then, the compact profile for use in small area’s and small aisles resulted in a tried and tested base to serve as a platform for for any carrier on the production floor. Now, the Ŝharko5 Platform offers a complete mobile robotics solution to move standard pallets, B2 pallets, trolleys, carts, roll containers and many more carriers in any production facility.
The Ŝharko5 platform not only offers a robotics platform, but also comprises high level services, intelligent software and system integration for automated production.
The Ŝharko5 platform keeps your operators focused at their stations and your fleet of Ŝharkos work all day and night and even on weekends, extending your workforce without extending your labor costs.
See our solution in action
Meet the fleet
Ŝharko5SP (Small Pallet)
This robot is currently the robot with the smallest turning circle. If you transport Half Euro pallets, or an equivalent, then this is the ultimate robot for those really small aisles. Because it is omnidirectional, it can turn on the spot within its own length and move sideways. Also available with a maximum payload capacity of 1.000Kg; the SP+.
Suitable for:
Customizable
Overall length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Max. Payload:
Driving behaviour:
Small pallets, trolleys
Yes
918 mm (36,1 inch)
600 mm (23,6 inch)
192 mm (7,6 inch)
181 mm (7,1 inch)
565 mm (22,2 inch)
650 kg (1433 lbs)
Omnidirectional
Ŝharko5FP (Full Pallet)
The big brother of the SP, designed to transport Euro pallets, US Postal pallets or any equivalent. Because it is omnidirectional it can turn on the spot within its own length and move sideways, allowing it to operate in really small areas.
Suitable for:
Customizable:
Overall Length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Max. Payload:
Driving behaviour:
Euro pallets, US Postal pallets
Yes
1523 mm (60 inch)
1205 mm (47,4 inch)
192 mm (7,6 inch)
181 mm (7,1 inch)
565 mm (22,2 inch)
1000 kg (2204 lbs)
Omnidirectional

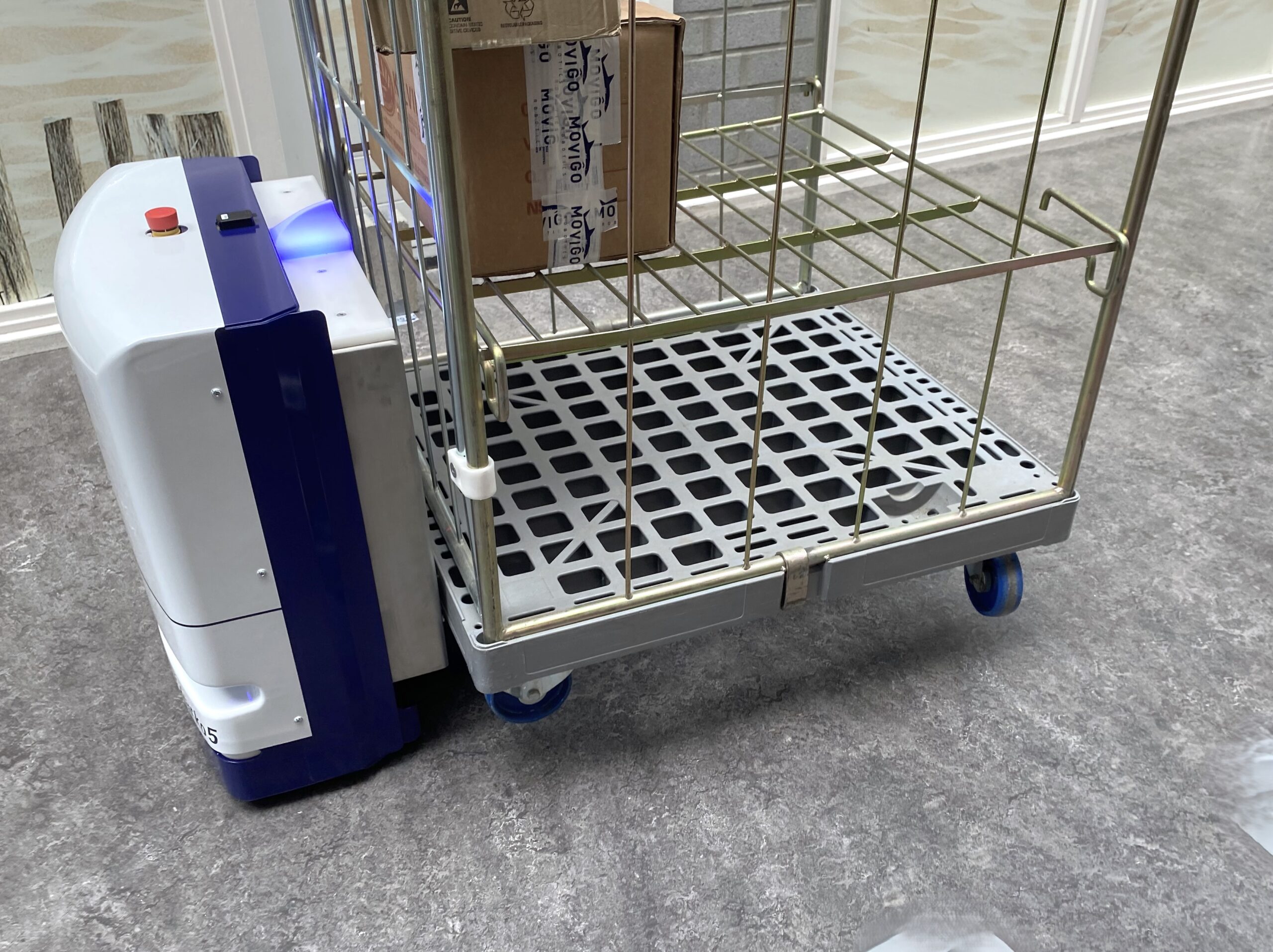

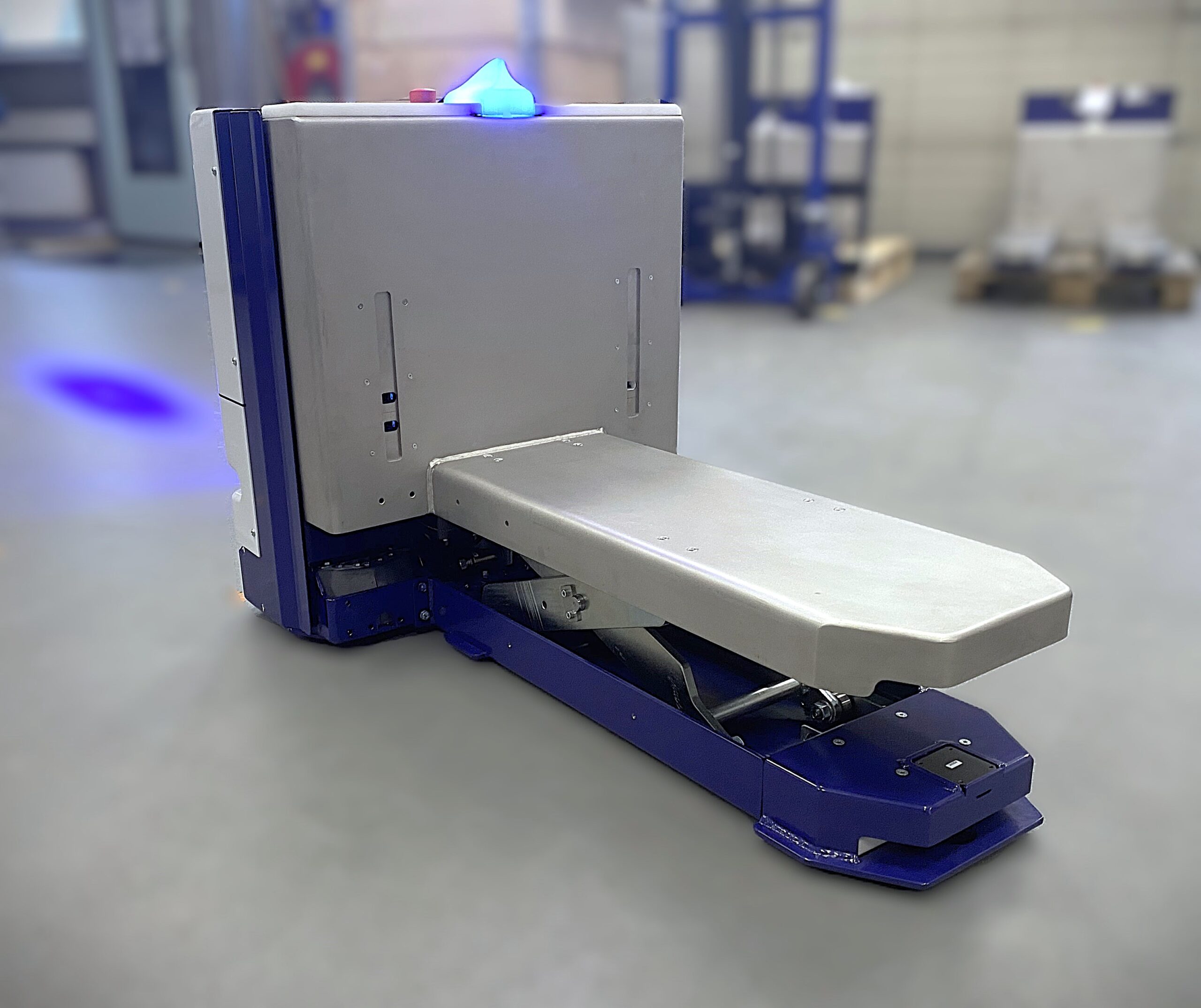

Ŝharko5HH (Hammerhead)
The Ŝharko5HH or Hammerhead earned its name because (from a birds eye view) it has the outline of a hammer, and a Hammerhead is a shark variety. The hammerhead is especially designed to transport trolleys, rolleys, dollies and racks. The single fork can be customized allowing the robot to pick up very narrow trolleys. Because it too is omnidirectional it can turn on the spot within its own length and move sideways. Also available with a maximum payload capacity of 1.000Kg; the HH+.
Suitable for:
Customizable:
Overall length:
Fork length:
Fork width:
Max. Payload:
Driving behaviour:
Trolleys, dollies, roll containers,
small pallets
Yes
996 mm (39 inch)
678 mm (26,7 inch)
260 mm (10,2 inch)
650 kg (1433 lbs)
Omnidirectional

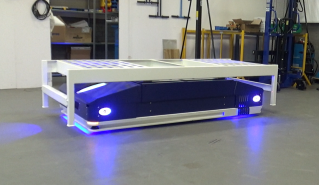

Ŝharko15RV (Rack Voyager )
This is far from a Recreational Vehicle. The Rack Voyager is specifically designed to work together with its standard payload rack to offer you standardisation. You can place any payload on the rack, allowing you to automate the transport of a large variety of pallets or payloads with just one type of robot.
Type:
Suitable for:
Length:
Width:
Height:
Max. Payload:
Driving behaviour:
Under Rider
Rack transport
2109 mm (43,7 inch)
1040 mm (40,9 inch)
342mm (13,7 inch)
1500 kg (3307 lbs)
Omnidirectional
