Ŝharko5 platform
All the ingredients for a complete print shop solution
One platform, any carrier
Endless transport opportunities for print production
The revolutionizing mobile robot technology we built for the Print Industry is now the most robust multi-carrier platform for endless possibilities when it comes to material handling in any print shop, even when space is scarce.
Automating the Print shop floor

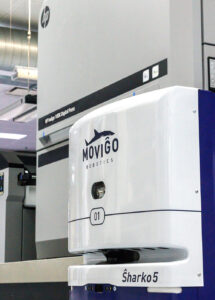

First we introduced the Ŝharko5 mobile robot, designed to serve the Print Industry. Then, the compact profile for use in small area’s and small aisles resulted in a tried and tested base to serve as a platform for for any carrier on the print shop floor. Now, the Ŝharko5 Platform is a complete mobile robotics solution to move standard pallets, B2 pallets, trolleys, carts, roll containers, Rolls (reels) and many more in any Print Shop.
The Ŝharko5 platform not only offers a robotics platform, but also comprises high level services, intelligent software and system integration for automated production.
The Ŝharko5 platform keeps your operators focused at your presses and best of all, your fleet of Ŝharkos work all day and night and even on weekends, extending your workforce without extending your labor costs.
See our solution in action
Our Platform Technology portfolio
Move any carrier with our custumizable AMR solutions based on our Ŝharko5 Platform Technology. All robots are based on the same proven technology, allowing for quick customization of robot layout to meet all shop floor demands.
Ŝharko5CL (Classic)

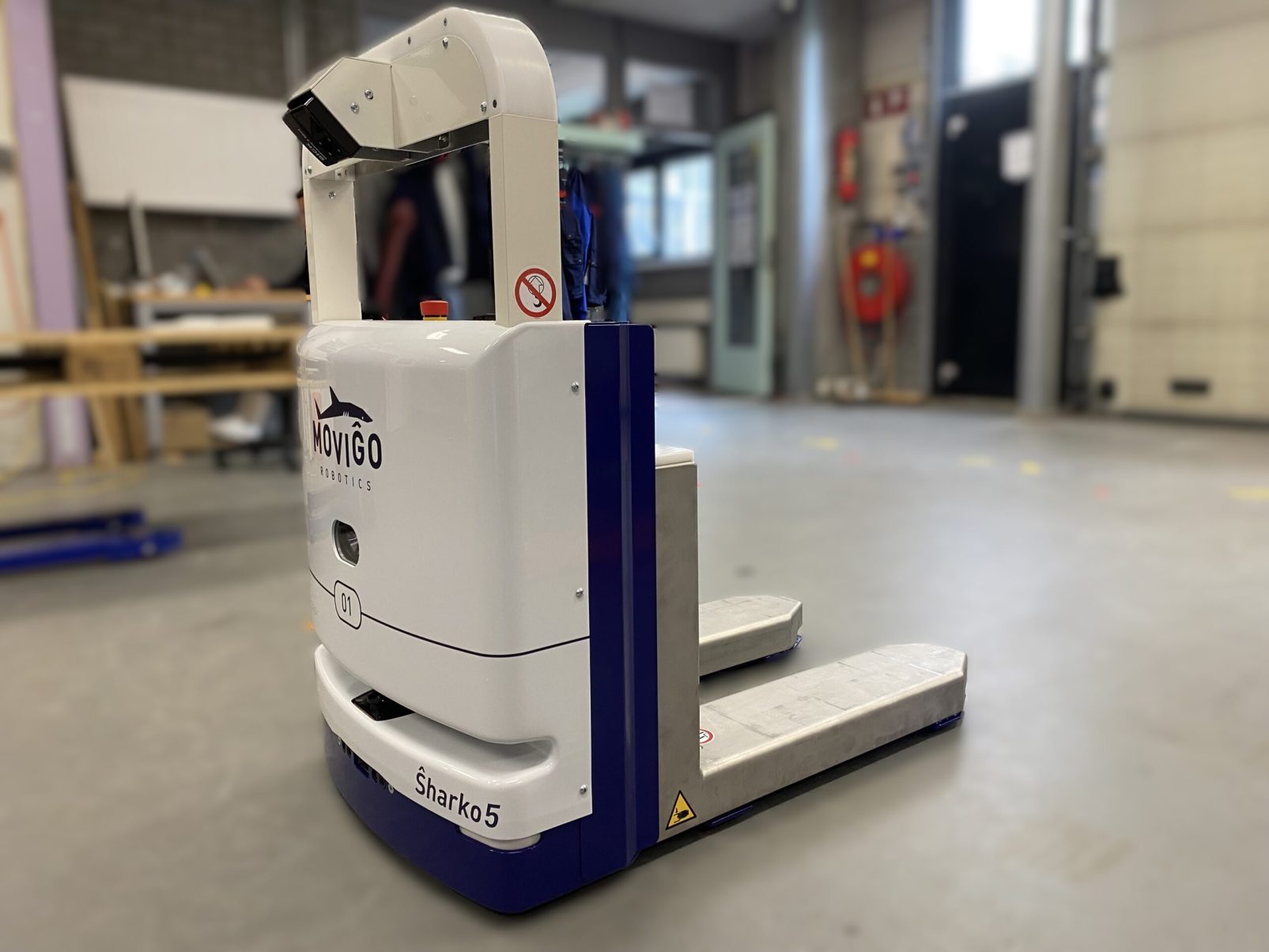

The OG. The first Ŝharko especially designed to transport half europallets and the specific pallets used by HP Indigo Presses. It was launched at the print industry’s leading fair Drupa, 2024. Since then a large number of them are active across the world.
Suitable for:
Customizable:
Overall Length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Max. Payload:
HP Indigo pallets (landscape and
portrait), small pallets and trolleys
Yes
913 mm (36 inch)
595 mm (23,4 inch)
163 mm (6,4 inch)
189 mm (7,4 inch)
515 mm (20,3 inch)
650 kg (1433 lbs)
Ŝharko5HP (HP Pallet)

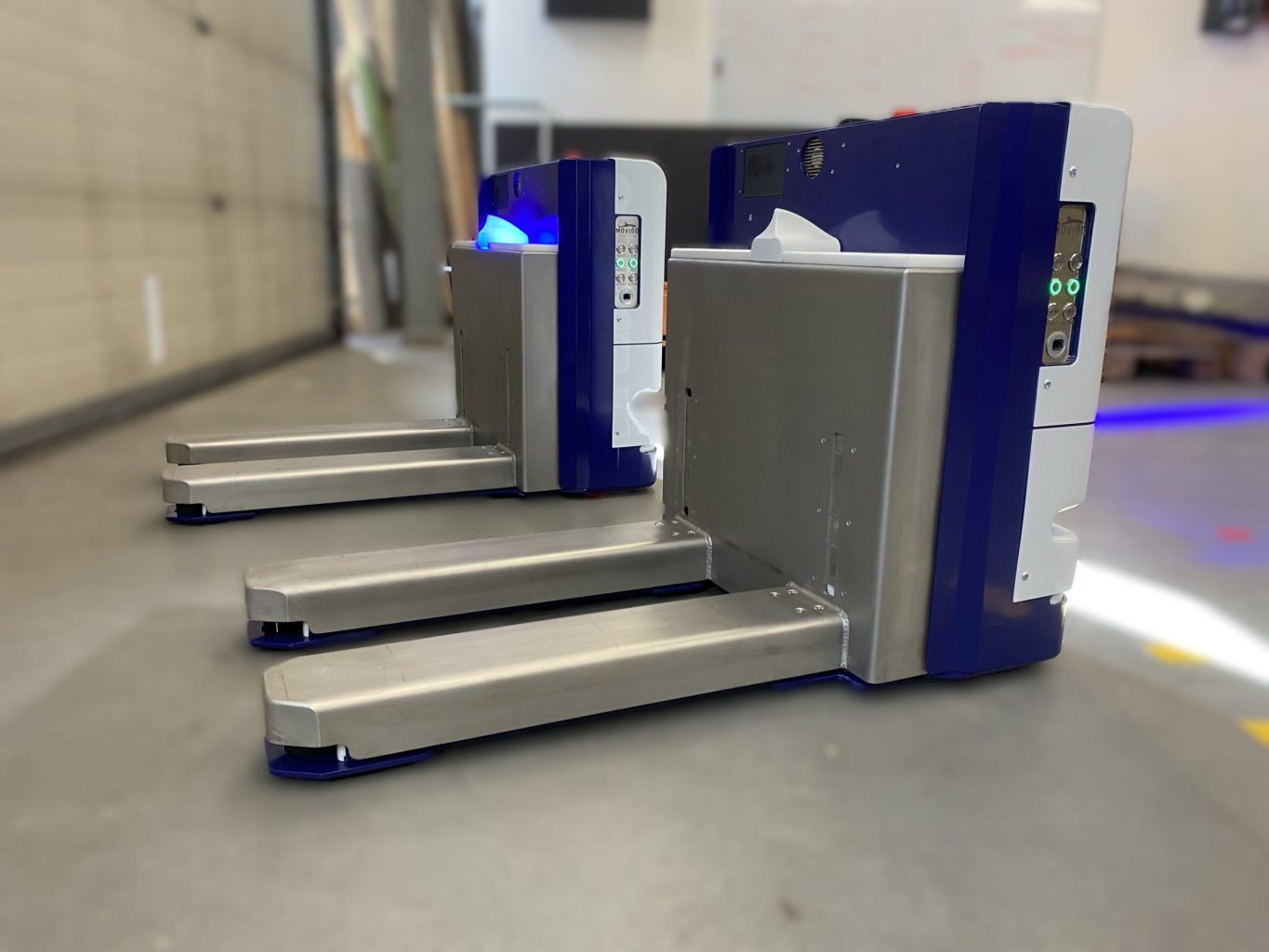

The next generation. The extra narrow forks allow for very narrow pallets that can be handled by this variety. Even a 60cm wide pallet falls within its capabilities. It can transport the HP Indigo press pallets or a similar version of it, picking up in portrait and landscape mode, which allows it to load and unload all HP Indigo B2 presses.
Suitable for:
Customizable
Overall length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Max. Payload:
HP Indigo pallets (landscape and
portait), small pallets,trolleys
Yes
913 mm (36 inch)
595 mm (26,7 inch)
116 mm (4,6 inch)
190mm (7,5 inch)
422 mm (16,6 inch)
650 kg (1433 lbs)
Ŝharko5SP (Small Pallet)
This robot has the smallest turning circle of all robots in our portfolio. If you transport Half Euro pallets, or an equivalent, then this is the ultimate robot for those really small aisles. Because it is omnidirectional, it can turn on the spot within its own length and move sideways. Also available with a maximum payload capacity of 1.000Kg; the SP+.
Suitable for:
Customizable
Overall length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Max. Payload:
Driving behaviour:
HP Indigo pallets (landscape), small
pallets, trolleys
Yes
918 mm (36,1 inch)
600 mm (23,6 inch)
192 mm (7,6 inch)
181 mm (7,1 inch)
565 mm (22,2 inch)
650 kg (1433 lbs)
Omnidirectional
Ŝharko5FP (Full Pallet)
The big brother of the SP, designed to transport Euro pallets, US Postal pallets or any equivalent. Because it is omnidirectional it can turn on the spot within its own length and move sideways, allowing it to operate in really small areas.
Suitable for:
Customizable:
Overall Length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Max. Payload:
Driving behaviour:
Euro pallets, US Postal pallets
Yes
1523 mm (60 inch)
1205 mm (47,4 inch)
192 mm (7,6 inch)
181 mm (7,1 inch)
565 mm (22,2 inch)
1000 kg (2204 lbs)
Omnidirectional
Ŝharko5HH (Hammerhead)

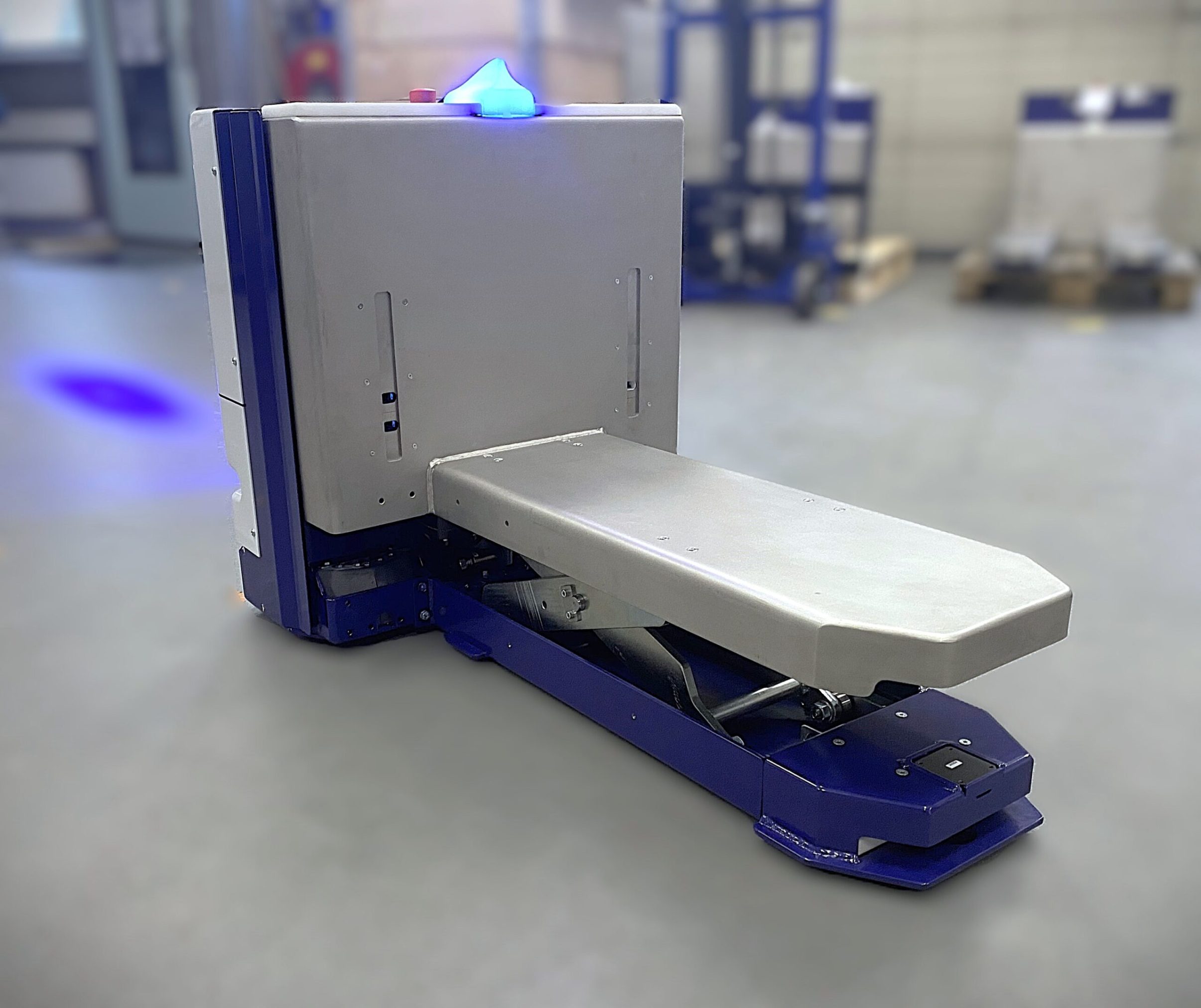

The Ŝharko5HH or Hammerhead earned its name because (from a birds eye view) it has the outline of a hammer, and a Hammerhead is a shark variety. The hammerhead is especially designed to transport trolleys, rolleys, dollies, roll containers and racks. The single fork can be customized allowing the robot to pick up very narrow trolleys. Because it too is omnidirectional it can turn on the spot within its own length and move sideways. Also available with a maximum payload capacity of 1.000Kg; the HH+.
Suitable for:
Customizable:
Overall length:
Fork length:
Fork width:
Max. Payload:
Driving behaviour:
Trolleys, dollies, roll containers,
small pallets
Yes
996 mm (39 inch)
678 mm (26,7 inch)
260 mm (10,2 inch)
650 kg (1433 lbs)
Omnidirectional
Ŝharko5RT (Roll Transport)
A true specialist if ever there was one. It supports all of HP’s roll fed presses like the V12, 6K, 200K and the PWP A2200. The RT picks up the rolls/reels directly from the floor. It is not exclusively for HP presses and supports all rolls with a minimum diameter of 750mm (29,5 inch) and a max diameter of 1270mm (50 inch).
Suitable for:
Overall length:
Overall width:
Min. roll diameter:
Max. roll diameter:
Fork length:
Max. Payload:
Driving behaviour:
Rolls (reels)
1055 mm (41,5 inch)
1120 mm (44 inch)
750 mm (29,5 inch)
1270 mm (50 inch)
700 mm (27,5 inch)
850 kg (1874 lbs)
Omnidirectional

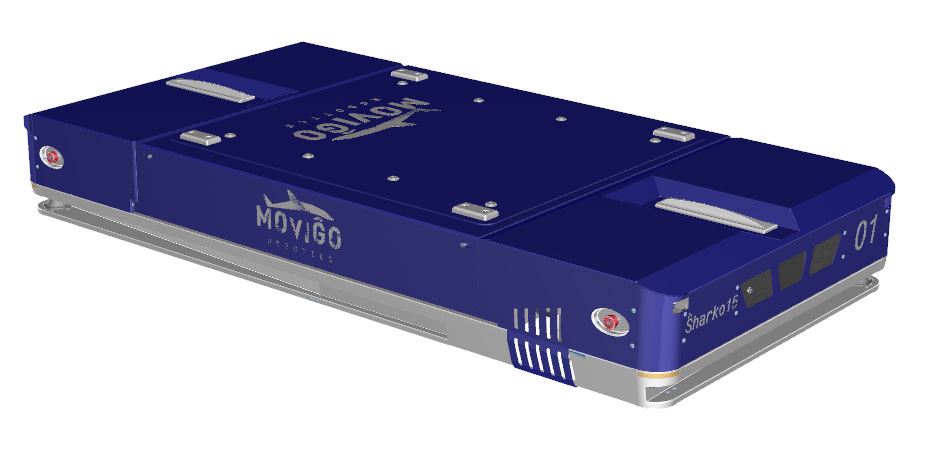

Ŝharko15LF (Large Format)

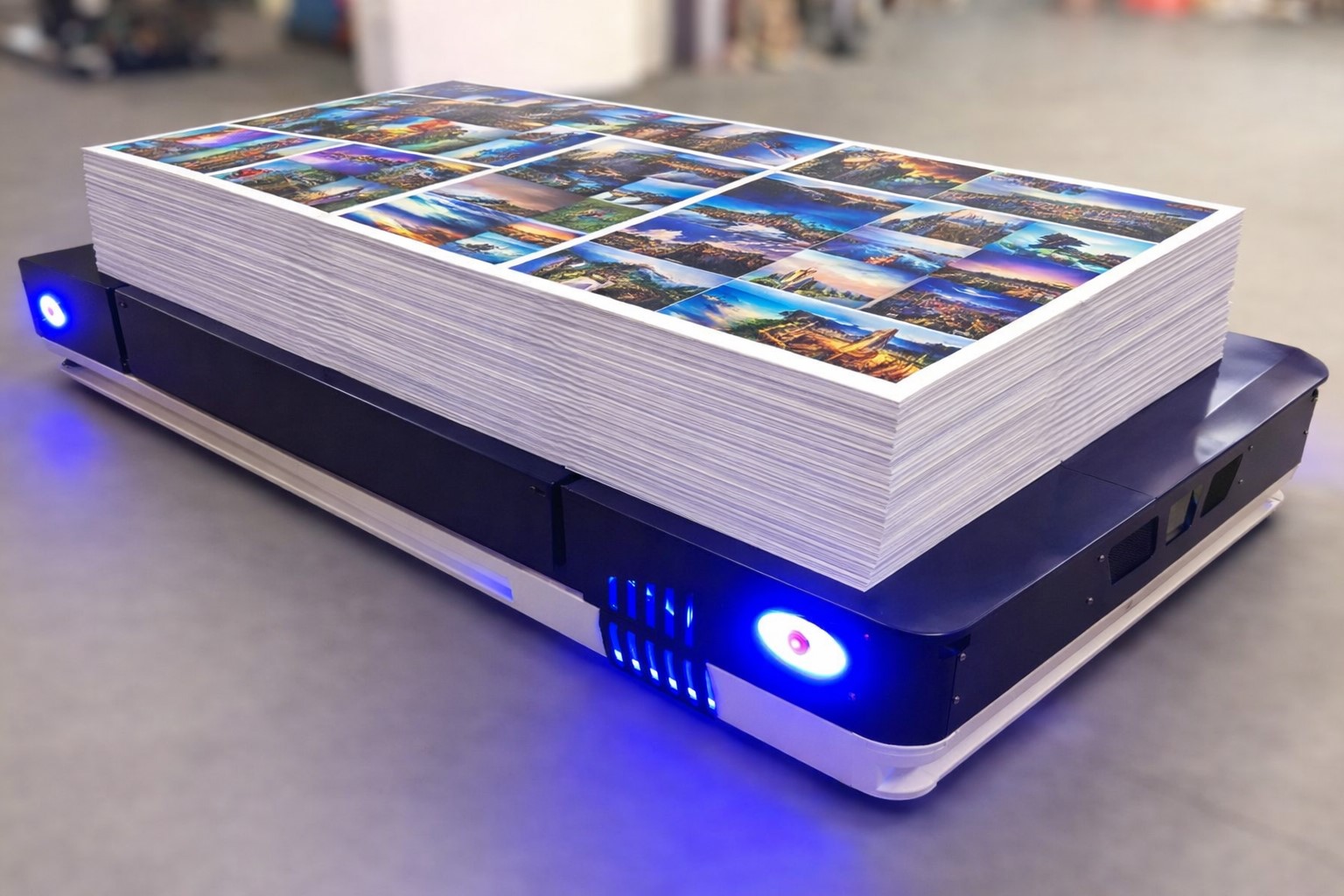

The name says it all. This robot is specifically designed to transport the large sheets used in Large Format printing. Like large sheets of (corrugated) cardboard, Dibond or other sandwich panels. The robot can be equipped with a roller or swivel table, making it possible to load and unload Large Format printers. Because it is omnidirectional, it can turn on the spot within its own length and move sideways.
Type:
Suitable for:
Customizable:
Length:
Width:
Height:
Max. Payload:
Driving behaviour:
Under Rider
Large format media
Yes
2109 mm (43,7 inch)
1040 mm (40,9 inch)
342mm (13,7 inch)
500 kg (1433 lbs)
Omnidirectional
Ŝharko15RV (Rack Voyager )

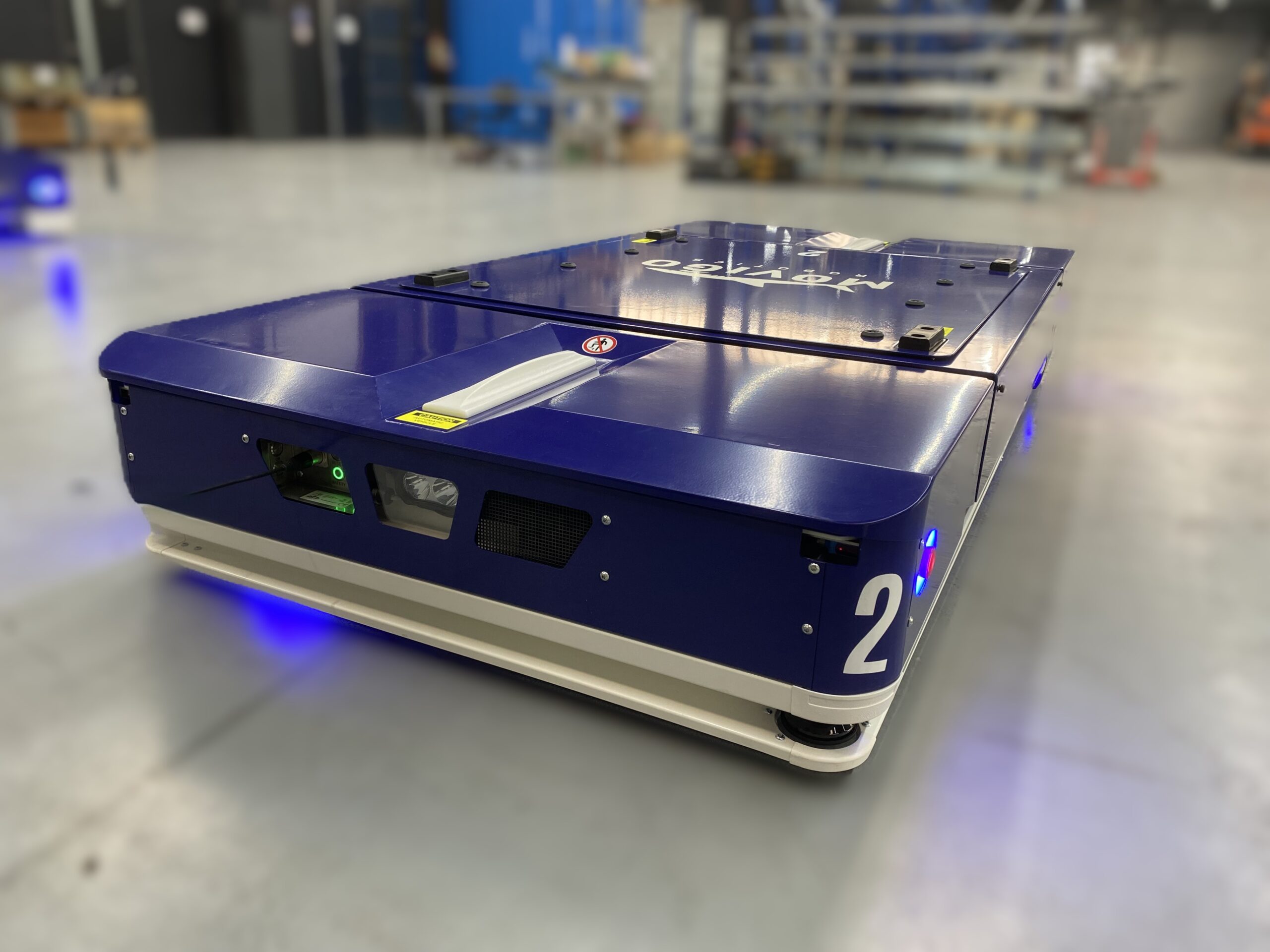

This is far from a Recreational Vehicle. The Rack Voyager is specifically designed to work together with its standard payload rack to offer you standardisation. You can place any payload on the rack, allowing you to automate the transport of a large variety of pallets or payloads with just one type of robot.
Type:
Suitable for:
Length:
Width:
Height:
Max. Payload:
Driving behaviour:
Under Rider
Rack transport
2109 mm (43,7 inch)
1040 mm (40,9 inch)
342mm (13,7 inch)
1500 kg (3307 lbs)
Omnidirectional
