Overview
Our Platform Technology portfolio
Move any carrier with our custumizable AMR solutions based on our Ŝharko5 Platform Technology. All robots are based on the same proven technology, allowing for quick customization of robot layout to meet all shop floor demands.

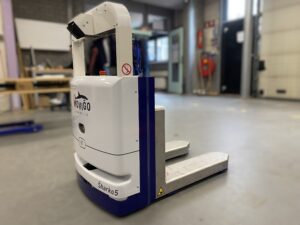

The OG. The first Ŝharko especially designed to transport half europallets and the specific pallets used by HP Indigo Presses. It was launched at the print industry’s leading fair Drupa, 2024. Since then a large number of them are active across the world.
Suitable for:
Customizable:
Overall Length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Max. Payload:
HP Indigo pallets (landscape and portrait), small
pallets and trolleys
Yes
913 mm (36 inch)
595 mm (23,4 inch)
163 mm (6,4 inch)
189 mm (7,4 inch)
515 mm (20,3 inch)
650 kg (1433 lbs)

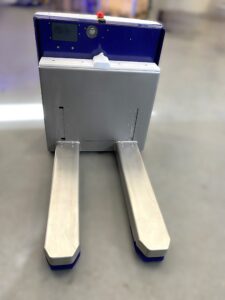

The next generation. The extra narrow forks allow for very narrow pallets that can be handled by this variety. Even a 60cm wide pallet falls within its capabilities. It can transport the HP Indigo press pallets or a similar version of it, picking up in portrait and landscape mode, which allows it to load and unload all HP Indigo B2 presses.
Suitable for:
Customizable
Overall length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Max. Payload:
HP Indigo pallets (landscape and
portait), small pallets,trolleys
Yes
913 mm (36 inch)
595 mm (26,7 inch)
116 mm (4,6 inch)
190mm (7,5 inch)
422 mm (16,6 inch)
650 kg (1433 lbs)
This robot is currently the robot with the smallest turning circle. If you transport Half Euro pallets, or an equivalent, then this is the ultimate robot for those really small aisles. Because it is omnidirectional, it can turn on the spot within its own length and move sideways. Also available with a maximum payload capacity of 1.000Kg; the SP+.
Suitable for:
Customizable
Overall length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Max. Payload:
Driving behaviour:
HP Indigo pallets (landscape), small pallets, trolleys
Yes
918 mm (36,1 inch)
600 mm (23,6 inch)
192 mm (7,6 inch)
181 mm (7,1 inch)
565 mm (22,2 inch)
650 kg (1433 lbs)
Omnidirectional

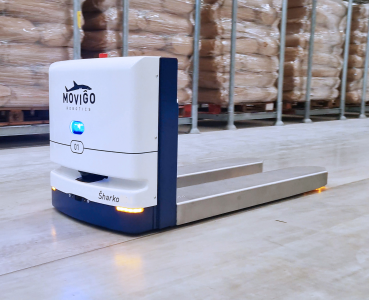

The big brother of the SP, designed to transport Euro pallets, US Postal pallets or any equivalent. Because it is omnidirectional it can turn on the spot within its own length and move sideways, allowing it to operate in really small areas.
Suitable for:
Customizable:
Overall Length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Max. Payload:
Driving behaviour:
Euro pallets, US Postal pallets
Yes
1523 mm (60 inch)
1205 mm (47,4 inch)
192 mm (7,6 inch)
181 mm (7,1 inch)
565 mm (22,2 inch)
1000 kg (2204 lbs)
Omnidirectional

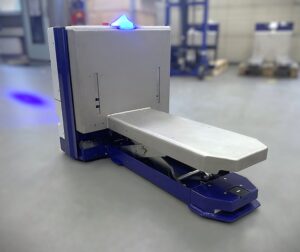

The Ŝharko5HH or Hammerhead earned its name because (from a birds eye view) it has the outline of a hammer, and a Hammerhead is a shark variety. The hammerhead is especially designed to transport trolleys, rolleys, dollies and racks. The single fork can be customized allowing the robot to pick up very narrow trolleys. Because it too is omnidirectional it can turn on the spot within its own length and move sideways. Also available with a maximum payload capacity of 1.000Kg; the HH+.
Suitable for:
Customizable:
Overall length:
Fork length:
Fork width:
Max. Payload:
Driving behaviour:
Trolleys, dollies, roll containers, small pallets
Yes
996 mm (39 inch)
678 mm (26,7 inch)
260 mm (10,2 inch)
650 kg (1433 lbs)
Omnidirectional
A true specialist if ever there was one. It supports all of HP’s roll fed presses like the V12, 6K, 200K and the PWP A2200. The RT picks up the rolls/reels directly from the floor. It is not exclusively for HP presses and supports all rolls with a minimum diameter of … and a max diameter of …
Suitable for:
Overall length:
Fork length:
Fork width:
Space between forks:
Overall fork width:
Roll sizes:
Max. Payload:
Driving behaviour:
Rolls (reels)
x mm (x inch)
x mm (x inch)
x mm (x inch)
x mm (x inch)
x
x
x
Omnidirectional
The name says it all. This robot is specifically designed to transport the large sheets used in Large Format printing. Like large sheets of (corrugated) cardboard, Dibond or other sandwich panels. The robot can be equipped with a roller or swivel table, making it possible to load and unload Large Format printers. Because it is omnidirectional, it can turn on the spot within its own length and move sideways.
Type:
Suitable for:
Customizable:
Length:
Width:
Height:
Max. Payload:
Driving behaviour:
Under Rider
Large format media
Yes
2109 mm (43,7 inch)
1040 mm (40,9 inch)
342mm (13,7 inch)
500 kg (1433 lbs)
Omnidirectional

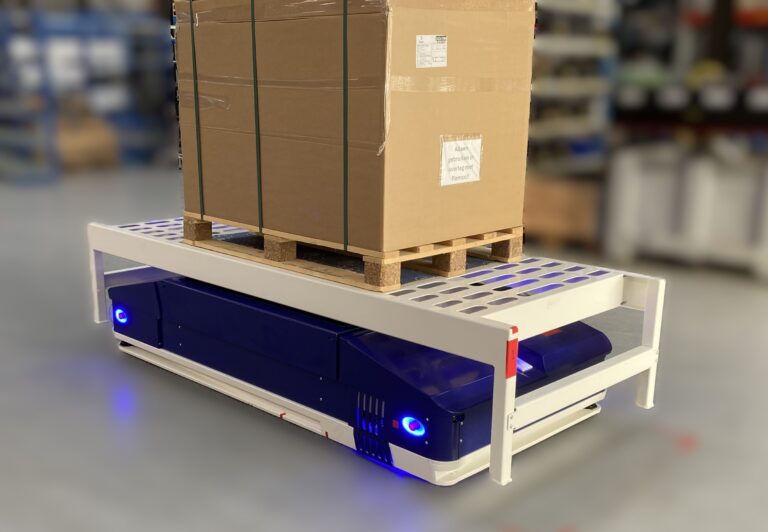

This is far from a Recreational Vehicle. The Rack Voyager is specifically designed to work together with its standard payload rack to offer you standardisation. You can place any payload on the rack, allowing you to automate the transport of a large variety of pallets or payloads with just one type of robot.
Type:
Suitable for:
Length:
Width:
Height:
Max. Payload:
Driving behaviour:
Under Rider
Rack transport
2109 mm (43,7 inch)
1040 mm (40,9 inch)
342mm (13,7 inch)
1500 kg (3307 lbs)
Omnidirectional
